joining tables

Definition of JOIN #

A JOIN is an SQL operation used to combine rows from two or more tables based on a related column (common key).

Why JOIN is Used #

In real databases, data is split into multiple tables to avoid duplication.

JOIN helps you:

• Combine related data
• Avoid redundancy
• Get meaningful results in one query

Sample Tables (Used in All Examples) #

employees #

departments #

INNER JOIN #

Definition #

Returns only the rows that have matching values in both tables

Syntax #

SELECT columns
FROM table1
INNER JOIN table2
ON table1.column = table2.column;

Example

SELECT e.name, d.dept_name
FROM employees e
INNER JOIN departments d
ON e.dept_id = d.dept_id;

✔ Output:

• Alex → Sales
• John → HR

Emma excluded (no match)

LEFT JOIN (LEFT OUTER JOIN) #

Definition #

Returns all rows from the left table, and matched rows from the right
If no match → NULL

Example #

SELECT e.name, d.dept_name
FROM employees e
LEFT JOIN departments d
ON e.dept_id = d.dept_id;

Output:

• Alex → Sales
• John → HR
• Emma → NULL

RIGHT JOIN (RIGHT OUTER JOIN) #

Definition #

Returns all rows from the right table, and matched rows from the left
If no match → NULL

Example #

SELECT e.name, d.dept_name
FROM employees e
RIGHT JOIN departments d
ON e.dept_id = d.dept_id;

Output:

• Sales → Alex
• HR → John
• IT → NULL

FULL JOIN (FULL OUTER JOIN) #

Definition #

Returns all rows from both tables

Matches where possible, otherwise NULL

Example #

SELECT e.name, d.dept_name
FROM employees e
FULL JOIN departments d
ON e.dept_id = d.dept_id;

Output:

• Sales → Alex
• HR → John
• IT → NULL

FULL JOIN (FULL OUTER JOIN) #

Definition #

Returns all rows from both tables
Matches where possible, otherwise NULL

Example #

SELECT e.name, d.dept_name
FROM employees e
FULL JOIN departments d
ON e.dept_id = d.dept_id;

Output:

• Alex → Sales
• John → HR
• Emma → NULL
• NULL → IT

SELF JOIN #

Definition #

A table joined with itself to relate rows within the same table

Example Table #

Query #

SELECT e.name AS employee, m.name AS manager
FROM employees e
LEFT JOIN employees m
ON e.manager_id = m.id;

✔ Output:

• John → Alex
• Emma → Alex
• Alex → NULL

CROSS JOIN #

Definition #

Returns all possible combinations of rows from both tables (Cartesian product)

Example #

SELECT e.name, d.dept_name
FROM employees e
CROSS JOIN departments d;

If:

• 3 employees
• 3 departments

Output = 9 rows (3 × 3)

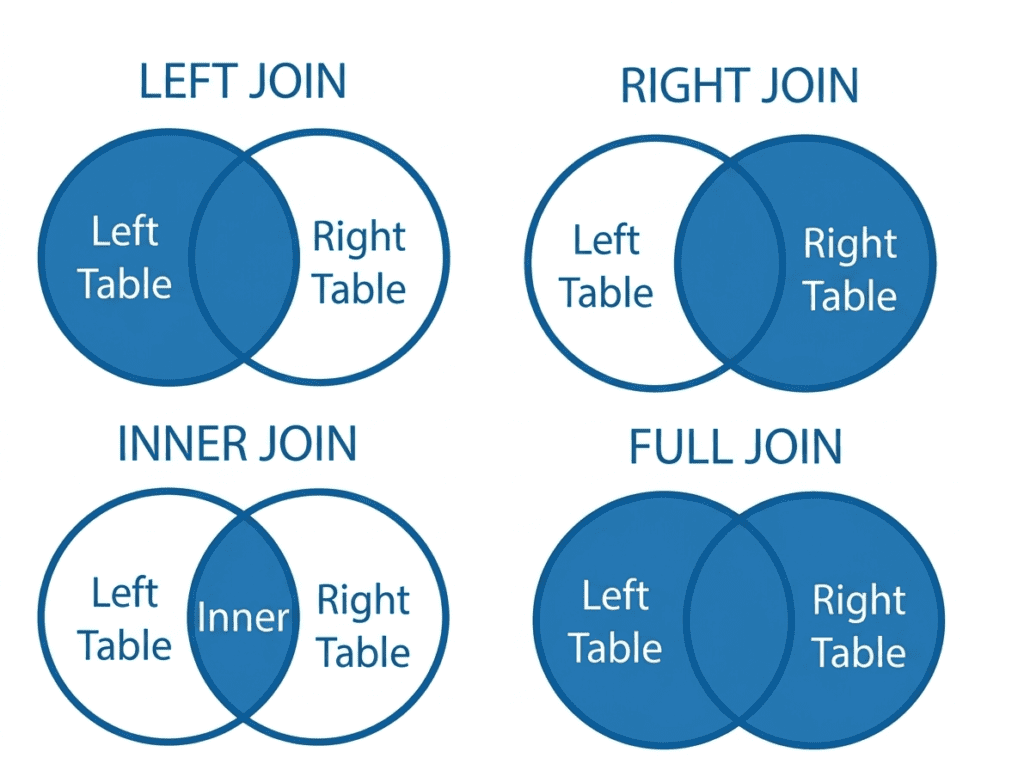

Visual Understanding (Simple Logic) #

Key Concept (Very Important) #

JOIN always uses a condition:

ON table1.column = table2.column

This is usually:

• Primary Key ↔ Foreign Key

Real-World Example #

Requirement:

• Show all employees with department names
• Even if department is missing

SELECT e.name, d.dept_name
FROM employees e
LEFT JOIN departments d
ON e.dept_id = d.dept_id;
