“Your model is performing badly. But why? Is it too simple? Too complex? Not enough data? More training needed? Learning curves answer all these questions with just two lines on a graph.”

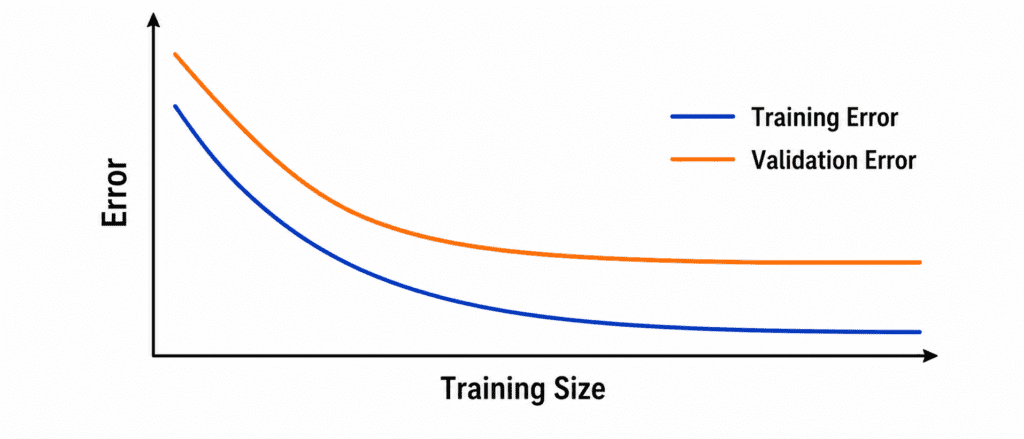

What Are Learning Curves? #
Two lines plotted against training experience.
X-axis: Training set size (or number of training iterations)
Y-axis: Error (or accuracy)
Two lines:
- Blue line = Performance on training data
- Orange line = Performance on validation data
That is it. Two lines. They tell you everything wrong with your model.
The Three Patterns #

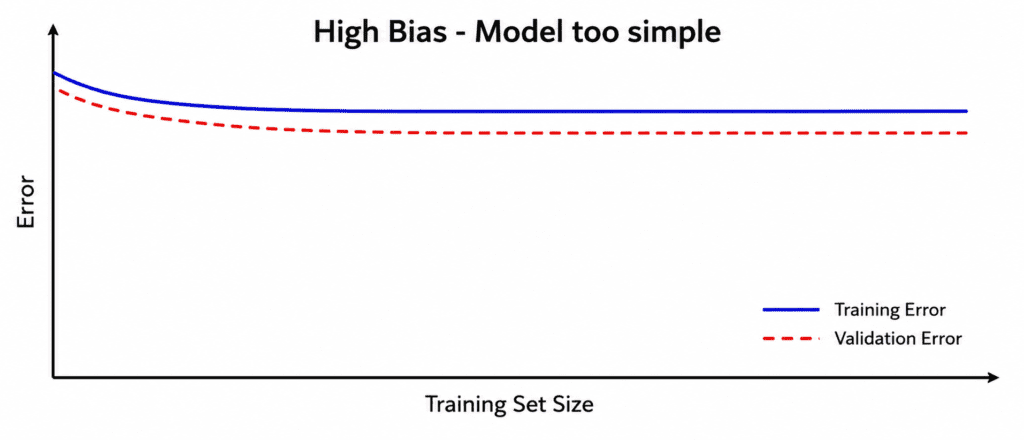

Pattern 1: High Bias (Underfitting) #
What you see:
- Training error is high
- Validation error is also high
- Both lines are close to each other
- Neither line reaches good performance
Why this happens:
Model is too simple. Like trying to fit a straight line through a circle. No matter how much data you give, it will never learn.
The fix:
- Use a more complex model
- Add more features
- Reduce regularization

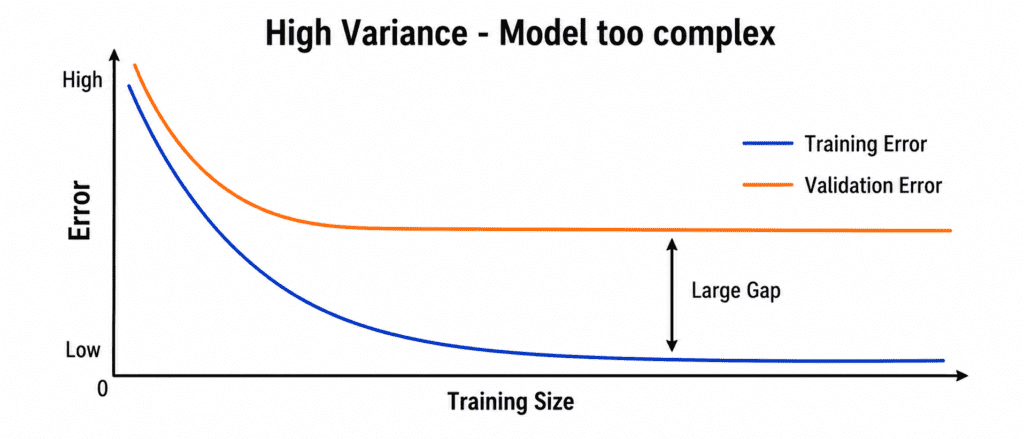

Pattern 2: High Variance (Overfitting) #
What you see:
- Training error is very low (close to zero)
- Validation error is high
- Large gap between the two lines
- Gap gets wider as training progresses
Why this happens:
Model is too complex. It memorizes the training data but cannot generalize to new data.
The fix:
- Get more training data
- Simplify the model
- Add regularization
- Early stopping

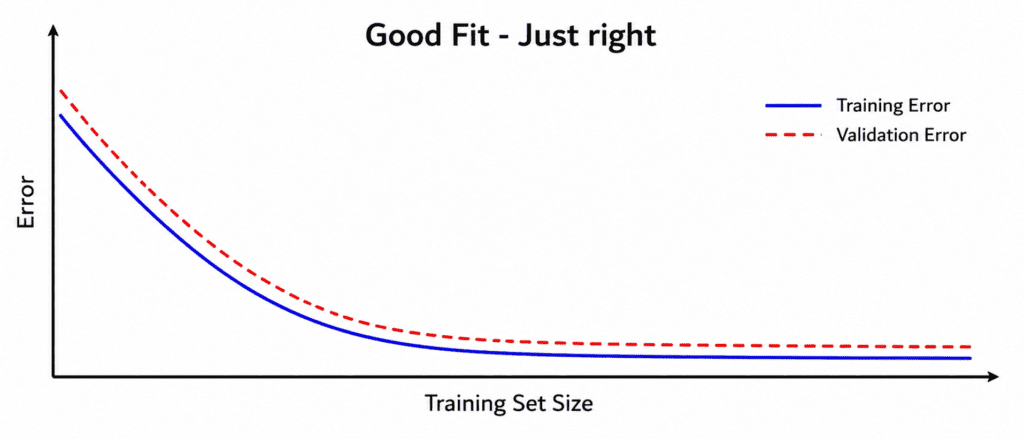

Pattern 3: Good Fit #
What you see:
- Training error is low
- Validation error is also low
- Small gap between lines
- Both lines flatten at good values
This is what you want.
What Learning Curves Tell You #
| Problem | Training Error | Validation Error | Gap |
|---|---|---|---|
| High Bias (Underfitting) | High | High | Small |
| High Variance (Overfitting) | Very Low | High | Large |
| Good Fit | Low | Low | Small |
One look at the graph. Instant diagnosis.
More Data Will Help Only One Problem #
If you have High Variance (Overfitting):
More data WILL help. Each new example makes it harder to memorize. Model forced to generalize.
If you have High Bias (Underfitting):
More data will NOT help. Model is too simple. It will never learn the pattern. You need a better model first.
The Ideal Learning Curve (What You Want) #
As you add more training data:
- Training error starts low and stays low
- Validation error starts higher but drops
- Both lines converge to similar low error
- Gap becomes small
If you see this, stop. Your model is ready.

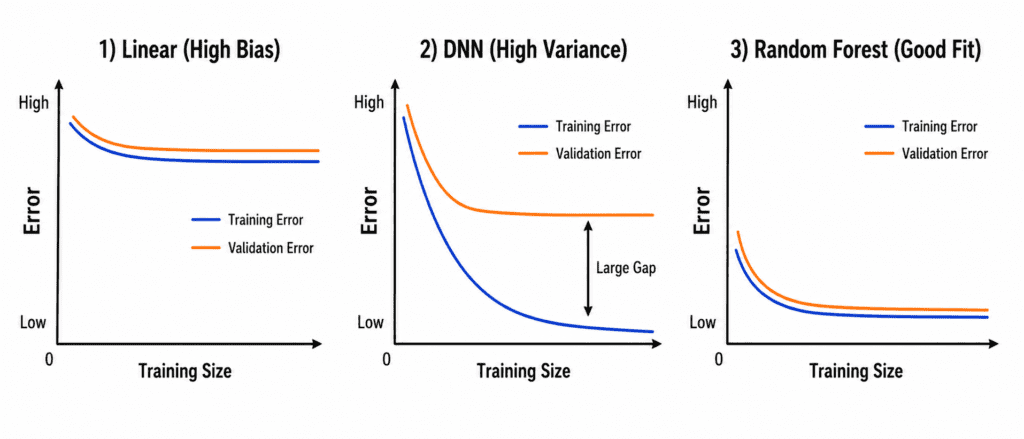

Real Example #
You are building a house price predictor.
First attempt (Linear Regression):
- Training error: $80k
- Validation error: $85k
→ High Bias. Too simple.
Second attempt (Deep Neural Network with 10 layers):
- Training error: $5k
- Validation error: $70k
→ High Variance. Overfitting.
Third attempt (Random Forest with 100 trees):
- Training error: $35k
- Validation error: $38k
→ Good fit. Ready.
Code (Scikit-learn)
from sklearn.model_selection import learning_curve
train_sizes, train_scores, val_scores = learning_curve(
model, X, y, cv=5,
train_sizes=np.linspace(0.1, 1.0, 10)
)When you see a problem, ask:
| Question | If Yes | Diagnosis |
|---|---|---|
| Both errors high? | Yes | Underfitting (High Bias) |
| Large gap between lines? | Yes | Overfitting (High Variance) |
| Gap shrinking as data increases? | Yes | Need more data |
| Gap not shrinking? | Yes | Model too simple. Change model. |
| Validation error going up? | Yes | Overfitting severely. Stop training. |
Quick Quiz #
Q1: Your training error is 10%. Validation error is 50%. What is the problem?
A1: High Variance (Overfitting). Model memorized training but fails on validation.
Q2: Both errors are 45% and close together. What is the problem?
A2: High Bias (Underfitting). Model too simple. Need more complexity.
Q3: You add more data. Validation error drops from 50% to 30%. What does this tell you?
A3: You had overfitting. More data helped. Keep adding data.
Q4: You add more data. Both errors stay at 45%. What does this tell you?
A4: You have underfitting. More data will not help. Change the model.
Key Takeaways (5 Lines) #
- Learning curves = Two lines (training error, validation error) vs training size.
- High Bias (Underfitting) = Both errors high and close. Need stronger model.
- High Variance (Overfitting) = Large gap between errors. Need more data or simpler model.
- More data helps overfitting but does NOT help underfitting.
- Good fit = Both errors low and close together.
